2.1. DocSpotter

DocSpotter is a novel querying technique to iteratively retrieve promising documents, specifically tuned for information extraction. DocSpotter uses several DM and Natural Language Processing (NLP) techniques. First, DocSpotter adopts a keyphrase-based term selection technique combined with data mining and natural language processing techniques. Second, it proposes a query weighting algorithm combined with the modified Robertson Spark-Jones (RSJ) weight algorithm and the Information Gain algorithm. Third, it translates a query to the Disjunctive Normal Form (DNF) by POS (Part-Of-Speech) term categories.

2.1.1 Data Collections for DocSpotter Evaluation: Subset of MEDLINE and TREC

Two different data collections, TREC and MEDLINE, were used for the evaluation for DocSpotter.

MEDLINE: We collected a subset of MEDLINE data consisting of 264,363 MEDLINE records from PubMed at http://www.ncbi.nlm.nih.gov/pubmed. These records were retrieved in the XML format by PubMed APIs provided in the Entrez E-Utilities package. After we collected the records, we queried BIND PPI DB with PubMed ID to identify what records contain PPI pairs. Out of these 264,363 records, there are 4521 records containing protein-protein interaction pairs (Table 1). Since the collected dataset does not have a sufficient number of records that contain protein-protein interaction pairs, we decide to include the records containing protein-protein pairs from other sources than human expert-curated databases such as OMIM (Online Mendelian Inheritance in Man) and DIP (Database of Interacting Proteins). The reason for this decision is that we are interested in how well DocSpotter can find the records that have not been covered in these two databases. Out of 4521 records, 4100 records were identified by OMID and DIP and the rest of the records, 421, are from other sources (He, Wang, & Li, 2009).

새창으로 보기

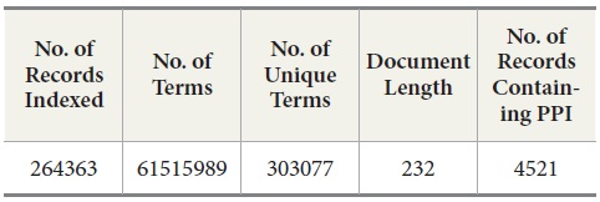

Table 1.

Statistics of the MEDLINE Data

TREC: To evaluate the performance of DocSpotter on the standard IR evaluation collection, we used TREC data (TREC-5, TREC-6, and TREC-7 ad hoc test set). These TREC ad hoc test sets have been used in many different tracks of TREC including the TREC-5 routing track, the TREC-7 ad hoc track, and the TREC-8 ad hoc track. We purchased these TREC data collections from Linguistic Data Consortium (LDC). The ad hoc task investigates the performance of systems that search a static document collection using new query statements. The document set consists of approximately 628,531 documents distributed on three CD-ROM disks (TREC disks 2, 4, and 5) taken from the following sources: Federal Register (FR), Financial Times (FT), Foreign Broadcast Information Service (FBIS), LA Times (LAT), Wall Street Journal, PA Newswire, and Information from Computer Select disks.

The query sets and document collections used in these tasks are shown in Table 2. Two tasks were conducted for evaluation. The first task is to retrieve results for the query sets from 251 to 400 used in TREC 5, 6, and 7. The second task with MEDLINE data is to retrieve MEDLINE records that contain protein-protein interaction pairs with two IR systems, PubMed and Lemur, to query MEDLINE data.

새창으로 보기

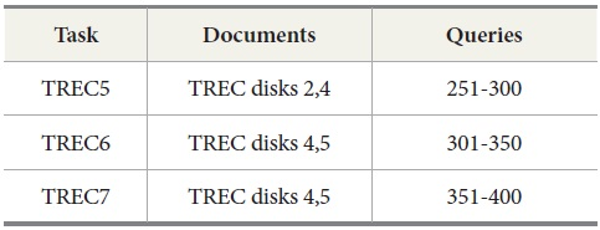

Table 2.

Documents and Queries Used in TREC Ad Hoc Tasks

There were 25 initial queries provided for the experiments. These queries consisted of 3 to 5 protein-protein interaction pairs. Figure 3 shows the initial query used to retrieve the documents from PubMed. The initial queries were passed to either PubMed or Lemur to retrieve the initial set of retrieved documents. DocSpotter was applied to extract keyphrases and expand queries based on the top N ranked keyphrases. The performance of DocSpotter and other comparison techniques is measured by average precision, precision at rank n, and F-measure on MEDLINE and TREC-5, 6, and 7 data. The details of the performance measure are described in Section 3.

새창으로 보기

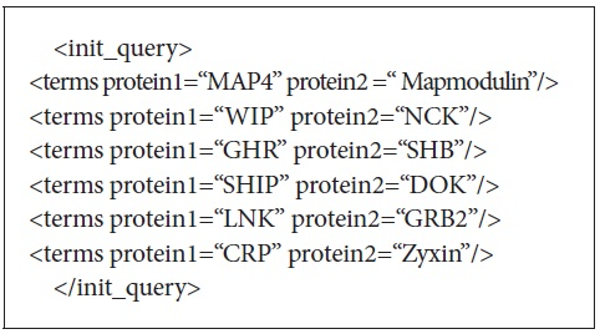

Fig. 3

Initial Query Used for Protein-Protein Interaction Tasks

2.1.2 DocSpotter Description

The keyphrase extraction technique used for DocSpotter consists of two stages: 1) building the extraction model and 2) extracting keyphrases. Input of the “building extraction model” stage is training data whereas input of the “extracting keyphrases” stage is test data. These two stages are fully automated. Both training and test data are processed by the three components: 1) Data Cleaning, 2) Data Tokenizing, and 3) Data Discretizing. Through data cleaning and tokenizing, we generate candidate keyphrases. Three feature sets were chosen and calculated for each candidate phrase: 1) TF*IDF, 2) Distance from First Occurrence, and 3) POS Tagging. Since these features are continuous, we need to convert them into nominal forms to make our machine learning algorithm applicable. Among many discretization algorithms, we chose the equal-depth (frequency) partitioning method which allows for good data scaling. Equaldepth discretization divides the range into N intervals, each containing approximately the same number of samples. During the training process, each feature is discretized. In DocSpotter, the value of each feature is replaced by the range to which the value belongs.

Keyphrase Ranking

Automatic query expansion requires a term-selection stage. The ranked order of terms is of primary importance in that the terms that are most likely to be useful are close to the top of the list. We re-weight candidate keyphrases with an Information Gain measure. Specifically, candidate keyphrases are ranked by an Information Gain, GAIN(P), a measure of expected reduction in entropy based on the “usefulness” of an attribute A. The usefulness of an attribute is determined by the degree of uncertainty reduced when the attribute is chosen. This is one of the most popular measures of association used in data mining. For instance, Quinlan (1993) uses Information Gain for ID3 and its successor C4.5 which are widely-used decision tree techniques. ID3 and C4.5 construct simple trees by choosing at each step the splitting feature that “tells us the most” about the training data. Mathematically, Information Gain is defined as:

where P_i is value of candidate phrase that falls into a discrete range. I(p,n) measures the information required to classify an arbitrary tuple.

Each candidate phrase, extracted from a document, is ranked by the probability calculated with GAIN(P). In our approach, I(p,n) is stated such that the class p is where a candidate phrase is “keyphrase” and the class n is where a candidate phrase is “non-keyphrase.” Many query re-ranking algorithms are reported in literature (Robertson, Zaragoza, & Taylor, 2004). These algorithms attempt to quantify the value of candidate query expansion terms. Formulae estimate the term value based on qualitative or quantitative criteria. The qualitative arguments are concerned with the value of the particular term in retrieval. On the other hand, the quantitative argument involves some specific criteria such as a proof of performance. One example of the qualitative-based formula is the relevance weighting theory.

While there are many promising alternatives to this weighting scheme in IR literature, we chose the Robertson-Sparck Jones algorithm (Robertson & Sparck, 1976) as our base because it has been demonstrated to perform well, is naturally well suited to our task, and incorporating other term weighting schemes would require changes to our model.

The F4.5 formula proposed by Robertson and Jones has been widely used in IR systems with some modifications (Okapi). Although a few more algorithms were derived from the F4.5 formula by Robertson and Jones, in this paper we modify the original for keyphrases as shown:

P(w) is the keyphrase weight, N is the total number of sentences, n is the number of sentences in which that query terms co-occur, R is the total number of relevant sentences, and r is the number of relevant sentences in which the query terms co-occur. We combine Information Gain with the modified F4.5 formula to incorporate keyphrase properties gained (see formula 3). All candidate keyphrases are re-weighted by KP(r) and the top N ranked keyphrases are added to the query for the next pass. The N number is determined by the size of the retrieved documents.

Query Translation into DNF

A major research issue in IR is easing the user’s role of query formulation through automating the process of query formulation. There are two essential problems to address when searching with online systems: 1) initial query formulation that expresses the user’s information need; and 2) query reformulation that constructs a new query from the results of a prior query (Abdou & Savoy, 2008). The latter effort implements the notion of relevance feedback in IR systems and is the topic of this section. An algorithm for automating Boolean query formulation was first proposed in 1970. It employs a term weighting function first described in Frants and Shapiro (1991) to decide the “importance” of terms which have been identified. The terms were aggregated into “sub-requests” and combined into a Boolean expression in disjunctive normal form (DNF). Other algorithms that have been proposed to translate a query to DNF are based on classification, decision-trees, and thesauri. Mitra, Singhal, and Buckely (1998) proposed a technique for constructing Boolean constraints.

Our POS category-based translation technique differs from others in that ours is unsupervised and is easily integrated into other domains. In our technique, there are four different phrase categories defined: 1) ontology phrase category, 2) non-ontology noun phrase category, 3) non-ontology proper noun phrase category, and 4) verb phrase category. Phrases that have corresponding entities in ontologies such as MESH and WordNet belong to the ontology phrase category. Synonym relations are used for the entity matching between phrases in a query and ontologies entities. We include the verb phrase category as a major category because important verb phrases play a role in improving the retrieval performance. Keyphrases within the category are translated into DNF and categories are then translated into Conjunctive Normal Form. As explained earlier, within the same category the phrases are combined with the OR Boolean operator. Between categories, the terms are combined with the AND Boolean operator. Figure 4 illustrates how the original query (CDC and H1N1 and country) is expanded and translated into the final query with MESH. We index the MESH tree in XML, and the query term is used to look up the MESH index to select the closest match between the term and the MESH entry. Our query translation technique does not currently address the problem of translating ambiguous terms.

2.2. FCRF

In this section, we describe FCRF, a novel extraction technique based on incorporating various features into Conditional Random Fields (CRF). CRF is a discriminative undirected probabilistic graphical model to help the IE system cope with data sparseness (Lafferty, McCallum, & Pereira, 2001).

새창으로 보기

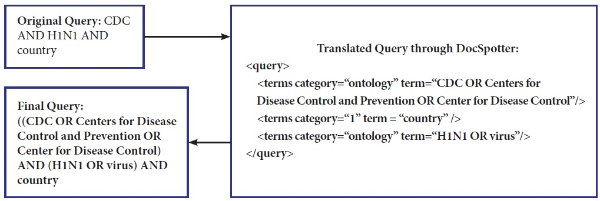

Fig. 4

An Example of Query Translation

2.2.1 Data Collections for FCRF Evaluation

We use OMIM and DIP as references to compare the number of articles needed to be retrieved and extracted by TAKES in order to rebuild the protein-protein interactions or gene-disease interactions for each species. OMIM is a database of human genes and genetic disorders (McKusick, 1998). With OMIM, our task is to extract gene-disease interaction. For our experiment, we used the data set compiled by Ray and Craven (2001). DIP (Xenarios & Eisenberg, 2001) is a knowledge base about the biological relationships of protein-protein interactions and is constructed by human experts manually, a many-year effort. DIP, the manually curated knowledge database, serves as an ideal testbed to verify the performance of our TAKES system. It contains the information of protein names, protein-protein interaction pairs, and the MEDLINE abstracts from which the protein-protein pairs are manually extracted for a few species such as human beings, yeast, fruit flies, house mice, Helicobacter pylori, and Escherichia coli (See Table 3).

The performance of FCRF and other comparison techniques is measured by precision, recall, and F-measure on MEDLINE data combined with OMIM and DIP, The details of the performance measure are described in Section 3.

새창으로 보기

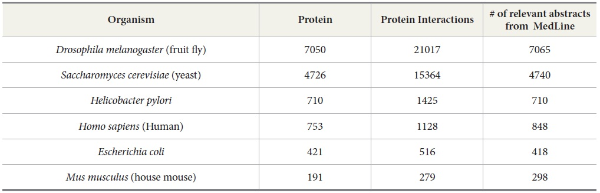

Table 3.

Protein-Protein Interactions from DIP

2.2.2 Feature-Enriched CRF (FCRF) Models

CRF is a probabilistic framework for labeling and segmenting sequential data. The underlying idea of CRF is that of defining a conditional probability distribution over label sequences given a particular observation sequence, rather than a joint distribution over both label and observation sequences. The advantage of CRFs over HMMs is their conditional nature, resulting in the relaxation of the independence assumptions required by HMMs in order to ensure tractable inference (Lafferty, McCallum, & Pereira, 2001). In this paper, we incorporate various features such as context, linguistic, part-of-speech, text chunking, and dictionary features into the extraction decision. Feature selection is critical to the success of machine learning approaches. We will illustrate how to calculate values of feature functions.

Entity extraction can be thought of as a sequence segmentation problem: each word is a token in a sequence to be assigned a label (e.g. PROTEIN, DNA, RNA, CELL-LINE, CELL-TYPE, or OTHER). Let o=<o₁, o₂, …, o_n> be a sequence of observed words of length n. Let S be a set of states in a finite state machine, each corresponding to a label l ∈ L (e.g. PROTEIN, DNA, etc.). Let S = <s₁, s₂, …, s_n> be the sequence of states in S that correspond to the labels assigned to words in the input sequence o. Linear-chain CRFs define the conditional probability of a state sequence given an input sequence to be:

where Z₀ is a normalization factor of all state sequences, f_j(s_i-1, s_i, o, i) is one of m functions that describes a feature, and λ_j is a learned weight for each such feature function. These weights are set to maximize the conditional log likelihood of labelled sequences in a training set: D={<o,l>₍₁₎, …, <o,l>_(n)}

When the training state sequences are fully labelled and unambiguous, the objective function is convex, thus the model is guaranteed to find the optimal weight settings in terms of LL(D). Once these settings are found, the labelling for the unlabelled sequence can be done using a modified Viterbi algorithm. CRFs are presented in more complete detail by Lafferty et al. (2001).

Text Chunking Feature

Text chunking is defined as dividing text into syntactically correlated parts of words (Kudo & Matsumoto, 2000). Chunking is a two-step process: identifying proper chunks from a sequence of tokens (such as words), and then classifying these chunks into grammatical classes. A major advantage of using text chunking over full parsing techniques is that partial parsing, such as text chunking, is much faster and more robust, yet sufficient for IE. SVM-based text chunking was reported to produce the highest accuracy in the text chunking task (Kudo & Matsumoto, 2000). The SVMbased approaches, such as the inductive-learning approach, take as input a set of training examples (given as binary valued feature vectors) and find a classification function that maps them to a class. In this paper, we use Tiny SVM (Kudo & Matsumoto, 2000) in that Tiny SVM performs well in handling a multi-class task. Figure 5 illustrates the procedure of converting a raw sentence from PubMed to the phrase-based units grouped by the SVM text-chunking technique. The top box shows a sentence that is part of abstracts retrieved from PubMed. The middle box illustrates the parsed sentence by POS taggers. The bottom box shows the final conversion made to the POS tagged sentence by the SVM-based text chunking technique.

새창으로 보기

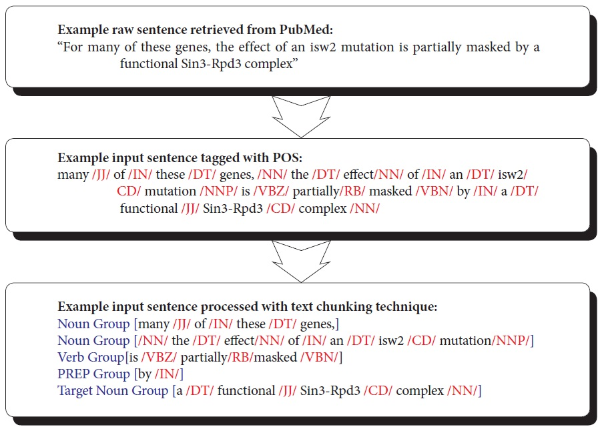

Fig. 5

A Procedure of Sentence Parsing. JJ: adjective; IN: preposition; DT: determiner; CD: cardinal number; NN: singular noun; NNP: proper noun; VBZ and VBN: verb; RB: adverb

Context Feature

Words preceding or following the target word may be useful for determining its category. It is obvious that the more context words analyzed the better and more precise the results gained. However, widening the context window rapidly increases the number of possibilities to calculate. In our experience, a suitable window size is five.

Part-Of-Speech Feature

Part of speech information is quite useful to detect named entities. Verbs and prepositions usually indicate a named entity’s boundaries, whereas nouns not found in the dictionary are usually good candidates for named entities. Our experience indicates that five is also a suitable window size. We used the Brill POS tagger to provide POS information.

Dictionary Feature

We use a dictionary feature function for every token in the corpus. This feature, described as “dictionary name” plus length of token string, informs us of whether a token matches a dictionary entry and whether it is part of a multi-token string that matches a compound named entity or named entity phrase in the dictionary.

3.1. Evaluation of DocSpotter and FCRF

In this section, we explain methodologies and strategies used for evaluation of DocSpotter and FCRF. To evaluate the performance of DocSpotter, we implemented two query expansion algorithms. The first algorithm is SLIPPER which is a rule-based query expansion technique (Cohen & Singer, 1996). The second algorithm is BM25, which is a statistical expansion technique (Robertson, Zaragoza, & Taylor, 2004). These two algorithms are well-accepted query expansion algorithms (Feng, Burns, & Hovy, 2008).

In evaluation of FCRF, we do not attempt to capture every instance of such tuples. Instead, we exploit the fact that these tuples tend to appear multiple times in the types of collections that we consider. As long as we capture one instance of such a tuple, we consider our system to be successful. To evaluate this task, we adapt the recall and precision metrics used by IR to quantify the accuracy and comprehensiveness of our combined table of tuples. Our metrics for evaluating the performance of an extraction system over a collection of documents D include all the tuples that appear in the collection D.

We conduct a series of experiments. We start with a few protein-protein interaction pairs or gene-disease interaction pairs and then let TAKES automatically construct queries, select the relevant articles from MEDLINE, and extract the protein-protein interaction for each species. We repeat the experiments for each species several times with different seed instances and take the average of the articles numbers. Identifying several key algorithms proposed in IE from our literature review, we implement five IE algorithms that were reported to produce high extraction accuracy. These five algorithms are 1) Dictionary-based (Blaschke, Andrade, Ouzounis, & Valencia, 1999), 2) RAPIER (Cohen & Singer, 1996), 3) Single POS HMM (Ray & Craven, 2001), 4) SVM (Kudo & Matsumoto, 2000), and 5) Maximum Entropy (Manning & Klein, 2003).

3.2. Evaluation Measure for DocSpotter and FCRF

The retrieval effectiveness of DocSpotter was measured by precision at rank n and non-interpolated average precision. Using the precision at rank n for the IR evaluation is based on the assumption that the most relevant hits must be in the top few documents returned for a query. Relevance ranking can be measured by computing precision at different cut-off points. Precision at rank n does not measure recall. A new measure called average precision combines precision, relevance ranking, and overall recall. Average precision is the sum of the precision at each relevant hit in the hit list divided by the total number of relevant documents in the collection. The cutoff value for the number of retrieved documents is 1000 in the TREC evaluation. In the evaluation of DocSpotter, we used 200 as the cutoff value in that the collection size in our evaluation is smaller than in the TREC evaluation.

where R = number of relevant docs for that query and i/ranki = 0 if document i was not retrieved.

The extraction effectiveness of FCRF was measured by Recall, Precision, and F-measure. In IE, the evaluation of system performance is done with an answer key that contains annotations and their attributes (also called slots) that the system should find from the input. Precision (P) and recall (R) have been used regularly to measure the performance of IE as well as IR. Recall denotes the ratio of the number of slots the system found correctly to the number of slots in the answer key. In addition, since F-measure provides a useful tool for examining the relative performance of systems when one has better precision and the other better recall, we report this number where it is useful.

4.1. Experimental Results with DocSpotter

As stated in the previous section, DocSpotter, the keyphrase-based query expansion algorithm, was evaluated with two different data sets and search engines. The subsections below report the experimental results with these combinations. We used 25 initial queries for both MEDLINE – PubMed and MEDLINE – Lemur. In order to examine whether query drift (i.e., the presence of aspects or topics not related to the query in top-retrieved documents) exists, we ran ten iterations in each query expansion experiment. Two measures, average precision and precision at top 20 documents, were utilized for performance evaluation of our query expansion algorithm. We limited the number of retrieved documents to 200. The four query expansion algorithms shown below are used for the experiments:

Experimental Results of DocSpotter on TREC Data

새창으로 보기

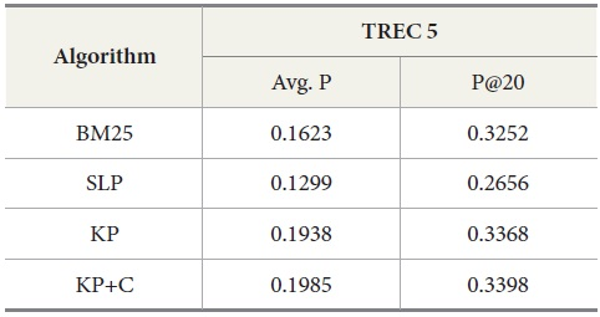

Table 4.

Results for TREC 5 with our four query expansion algorithms executing the query set 251-300

Table 4 shows the overall performance of the four algorithms executing the query set 251-300 on TREC 5 data. The results show that KP has the best performance in average precision as well as in precision at top twenty ranks (P@20) compared to other algorithms. To confirm the differences among the conditions, we conducted an ANOVA for the P@20 TREC 5 results. This showed an overall effect of condition F(3,196)=17.64, p<0.01. We also conducted individual t-tests essentially as specific comparisons. Our prediction that KP would be better than BM25 was confirmed t(49)=-7.37, p<0.01 (one-tailed) at n-1 degrees of freedom (50 queries). Similarly, our prediction that KP+C would be better than KP was confirmed t(49)=-4.72, p<0.01 (one-tailed).

Tables 5 and 6 show similar results to those obtained for TREC 5. The three new algorithms improve the retrieval performance on TREC 6 and 7. As with TREC 5, the KP+C algorithm outperforms BM25 and SLP algorithms in average precision and in P@20.

DocSpotter, the keyphrase-based technique combined with the POS phrase category, produces the highest average precision. One of the best results on TREC 5 is 19.44 and 32.40 in average precision and P@20 respectively (Mitra, Singhal, & Buckely, 1998). On TREC 6, their best results are 20.34 and 33.50 in average precision and P@20. The algorithm KP+C produces 21% and 48% better than these results on TREC 5 in average precision and P@20. On TREC 6, it is 39% and 22% which are better than the results reported by Mitra et al. (1998).

새창으로 보기

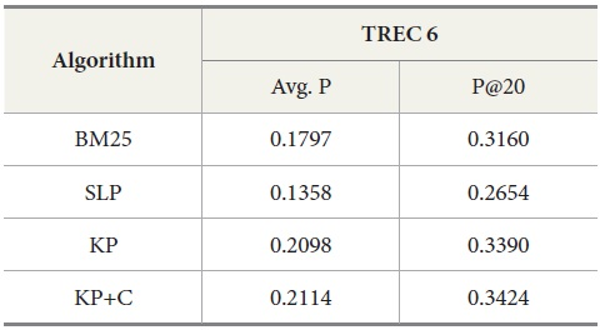

Table 5.

Results for TREC 6 with our four query expansion algorithms executing the query set 301-350

새창으로 보기

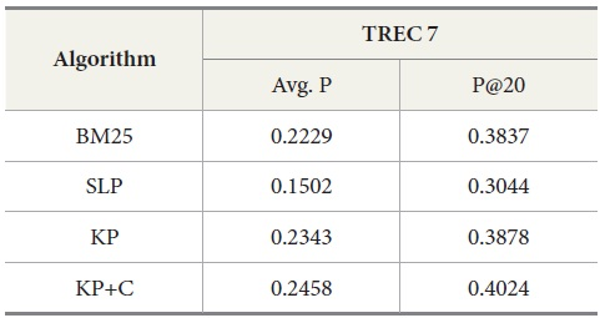

Table 6.

Results for TREC 7 with our four query-expansion algorithms executing the query set 351-400

Experimental Results of DocSpotter on MEDLINE Data

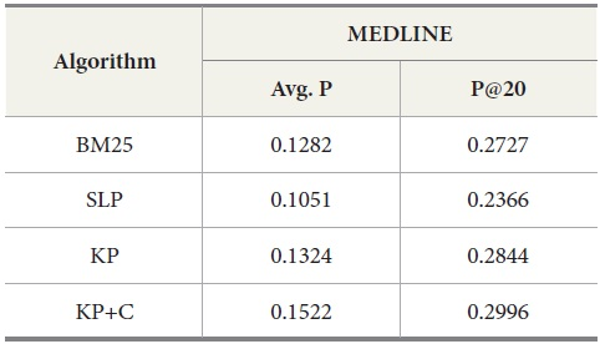

The experimental results for MEDLINE with PubMed are shown in Table 7. Our keyphrase-based technique combined with the POS phrase category produces the highest average precision. Our two algorithms (KP and KP+C) improve the retrieval performance on the tasks of retrieval documents containing protein-protein interaction pairs. The KP+C algorithm gives the best average precision. The worst performance was produced by a rule-based algorithm (SLP) both in average precision and precision at top 20.

새창으로 보기

Table 7.

Results for MEDLINE – PubMed with Four Query Expansion Algorithms

새창으로 보기

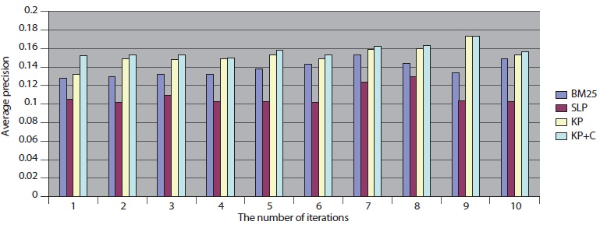

Fig. 6

Experimental Results for MEDLINE –PubMed

The overall performance of the query expansion algorithms is poor in terms of average precision (Figure 6) and precision at top 20. There might be two possible reasons that cause this overall poor performance. First, PubMed is based on an exact match retrieval model which makes the keyphrase-based query expansion less effective. Second, the size of the database, which contains more than 18 million documents, is too big.

We also explored the effect of a sequence of query expansion iterations. Table 8 shows the results for five query expansion iterations. The second column shows the number of retrieved documents from MEDLINE per iteration. The third column displays the number of retrieved documents containing protein-protein pairs. The fourth column is the F-Measure. For F-Measure, we used b=2 because recall is more important than precision in the tasks of retrieving the documents containing protein-protein interaction pairs. Our results show that F-Measure generally increases as the number of iterations increases, and the results indicate that a sequence of query expansion iterations has an impact on the overall retrieval performance.

새창으로 보기

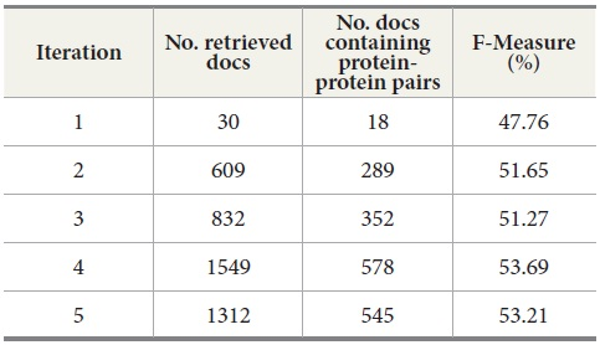

Table 8.

Query Expansion Iterations for MEDLINE - PubMed

In addition, we compared DocSpotter with another query expansion algorithm on MEDLINE – Lemur. For this experiment, approximately 0.26 million MEDLINE records were indexed and searched with Lemur. As indicated in Table 9, the best performance was produced by the keyphrase-based query expansion algorithm with the POS phrase category (KP+C) both in average precision and precision at top 20. The baseline query expansion algorithm was the next highest followed by BM25.

Overall, these results with MEDLINE-Lemur are no different from the previous results. One interesting observation is that MEDLINE-Lemur produces higher scores of average precision and precision at top 20 than other dataset-search engine combinations. The reasons for these higher scores are because 1) the data collection drawn from MEDLINE is homogeneous in terms of the subject matter of the collection and 2) Lemur search engine is the better search engine to work with over PubMed.

4.2. Experimental Results with FCRF

The results of experiments to evaluate the performance of FCRF on the task of protein-protein interaction extraction are shown below. In these experiments, five machine learning algorithms were trained using the abstracts with proteins and their interactions were processed by the text chunking technique. With this set of data, these systems extracted protein-protein interactions from the retrieved documents using DocSpotter. This gave us a measure of how the protein interaction extraction systems perform alone. Performance was evaluated using ten-fold cross validation and measuring recall and precision. Since the task was to extract interacting protein-pairs, we did not consider matching the exact position and every occurrence of interacting protein-pairs within the abstract. To evaluate these systems, we constructed a precision-recall graph. Recall denotes the ratio of the number of slots the system found correctly to the number of slots in the answer key, and precision is the ratio of the number of correctly filled slots to the total number of slots the system filled.

새창으로 보기

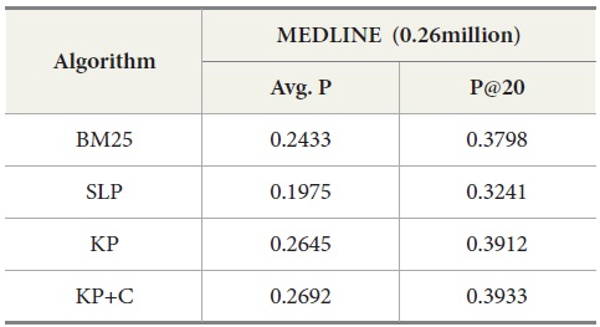

Table 9.

Results for MEDLINE-Lemur with Four Query Expansion Algorithms

Our experiments show that RAPIER produces relatively high precision but low recall. Similar results are observed in the Single POS HMM method which also gives high precision but low recall. MaxEnt produces the second best results, although recall is relatively lower than precision.

SVM produces better results than RAPIER or Single POS HMM but worse than MaxEnt and FCRF. Among these five systems, FCRF outperforms RAPIER, single POS HMM, SVM, and MaxEnt in terms of precision, recall, and F-measure. As shown in Table 10, F-Measure of FCRF is 59.83% whereas RAPER is 44.13%, SVM is 51.44%, single POS HMM is 50.58%, and MaxEnt is 53.04%.

We conducted another set of tests to investigate whether the results observed above are reproduced. To this end, we used input data that was obtained from DocSpotter as discussed. Since iterative query expansion is able to retrieve multiple sets of documents, we used a set of documents retrieved in each round.

Table 11 shows the experimental results with a new set of incoming data from DocSpotter. The apparent pattern of the results resembles the one reported in the previous run (Table 10). As indicated in Table 11, FCRF produced the best performance: precision 73.13%, recall 51.91%, and F-measure, 59.36%. The next highest score is produced by MaxEnt. RAPIER produces the lowest precision, recall, and F-Measure.

새창으로 보기

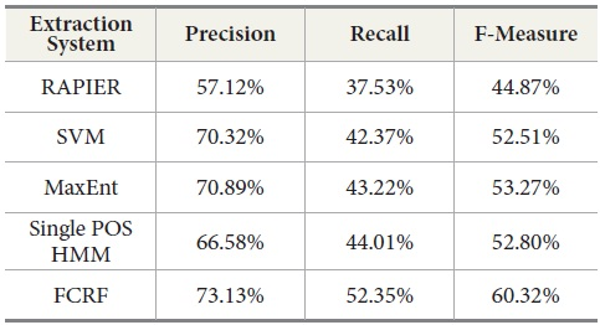

Table 10.

Comparison of Extraction System Performance in First Round

새창으로 보기

Table 11.

Comparison of Extraction System Performance in Second Round

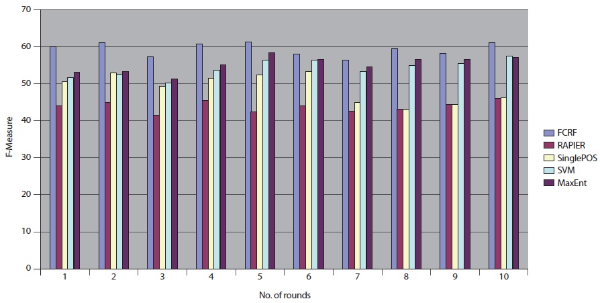

We repeated the same experimental tests over the 10 different datasets that were sent from DocSpotter. Figure 7 shows the results of the five extraction methods, FCRF, Single POS HMM, RAPIER, SVM, and MaxEnt in F-Measure. FCRF outperforms the other four algorithms. FCRF produces between 56.32% and 61.12% in F-Measure. Single POS HMM produces between 42.84% and 53.32% in F-Measure. RAPIER produces between 42.23% and 45.95% in F-Measure. SVM produces between 50.20% and 57.43% in F-Measure. MaxEnt’s performance is in between 51.23% and 58.23% in F-Measure.

새창으로 보기

Fig. 7

Overall Extraction Performance of the Five Algorithms over 10 iterations
