2.1. Concept of Resource Description and Digital Preservation

With the development of Information and Communication Technology (ICT), various types of information resources are rapidly increasing and have been published in digital format on the Web. In addition, ICTs can play an important role in support of the use of those resources. In this changed information environment, the importance of digital preservation gains more weight in the management and re-use of information resources.

Although there are a variety of formats of information resources, most resources in both printed and digital formats are generally preserved in digital format because digital formatting has advantages in preserving resources from the perspective of retention and re-use of those resources.

Digital preservation refers to the series of managed activities necessary to ensure continued access to digital resources for as long as necessary (Digital Preservation Coalition, 2012). It includes all of the actions required to maintain access to digital resources beyond the limits of media failure or technological change (Gomes, Miranda & Costa, 2011).

In order to process digital preservation, it is required to identify and retrieve all related components for the purpose of preserving a digital object. From this perspective, the process of digital preservation is inseparable from accessing the preserved object, which can be supported by resource description (Vardigan & Whiteman, 2007). For these reasons, the object needs to be re-created in a surrogate form, which is mainly generated in the format of metadata records.

In order for successful digital preservation, fundamental principles for resource description need to be established. More specifically, metadata standards that can support the description of the preserved resources may be the core of the process of digital preservation. However, there are many limitations in establishing appropriate disciplines that can be applied to digital preservation. From this perspective, many research efforts have been conducted to address these challenges and to develop digital preservation activities.

According to Heslop, Davis, and Wilson (2002), the object preserved in digital archives is often not an original physical object but a conceptual or virtual object that contains, replicates, or embodies the original object’s significant properties or essential qualities. It refers to the characteristics that need to be preserved as descriptive records. For these reasons, many research studies have made standardized conceptual models for supporting the description of preserved objects that can suit the purpose of their communities (Lynch, 2003).

However, it is possible that a preserved resource can change its format during its conversion or transformation process in order to be included in digital preservation. Metadata is required in this process and describes every aspect related to the resource from its origins to the current status in the digital preservation process. At this point, one important thing is that every change or property needs to be described in a standardized and formal way (Calhoun, 2006). The description of preserved resources is the core of digital preservation. In order to support resource description in digital preservation, many reference models and strategies have been proposed, including the Open Archival Information System (OAIS) Reference Model and DCC Curation Lifecycle Model.

In digital preservation communities, there have been many efforts to efficiently conduct digital preservation by standardizing the process of preserving resources in any format, including both born-digital and digitized resources. OAIS Reference Model is a representative model designed to support the overall process of digital preservation. The process provided by OAIS model consists of six steps. Each step requires different packages of additional information or metadata, and also needs different values for the same elements according to the purpose of each step, although they describe the same resource. From this perspective, the OAIS Reference Model defines long-term preservation in terms of the concept of an information package, for example, digital content and its associated metadata as a single package moving into (Submission Information Package: SIP), through (Archival Information Package: AIP), and out of (Dissemination Information Package: DIP) the archival system (Lane, 2012). Different metadata records may constitute different information packages. However, current approaches lack a well-defined architecture to support the use of preserved resources.

2.2. Challenges in Resource Description for Digital Preservation

Digital preservation is expected to provide a way of utilizing and reusing resources and the efficient long-term management of valuable resources. Because of arbitrary generation of information packages in the process of digital preservation, however, there are problems with resource description and the generation of information packages (IMS, 2003). In addition, because each set of metadata records is generated based on heterogeneous metadata standards and is independent from other records, they may not be efficiently reused when the process goes on. Therefore, each step may generate metadata records for the same resource redundantly. It may increase the complexity of the overall process of digital preservation. For these reasons, practical issues are considered in order to make appropriate use of resource description in the context of digital preservation. There is also a need to develop approaches and models for the re-use and connection of metadata records.

Resources for preservation go along with resource description. This description as additional information will have to be linked together in some way and methods of updating the resources and related information will have to be considered (NLII, 2003). From this perspective, a preserved resource is any resource that can be used to facilitate information activities and has been described using metadata. A resource cannot be regarded as a resource in digital preservation until it is made explicit through the addition of metadata. For these reasons, there is a growing awareness that preserving information resources will need to be expanded to include appropriate description through information packages by combining interrelated and relevant metadata records (Beagrie, 2002; Crow, 2002).

To fully support resource description in the context of digital preservation, metadata records that deal with every aspect of the preserved resource should be generated in each phase of digital preservation (Hedstrom, 1998). Because the same resource is described based on different metadata standards, the description can vary according to the unique purpose of each phase in the process of digital preservation. In the current status of digital preservation, however, the adoption of heterogeneous metadata standards has resulted in the inefficiency of generating information packages. This is mainly because the current reference models provide heterogeneous metadata records in each phase. For this reason, each metadata record is considered as an independent unit that may be isolated in each phase and may not be able to be fully reused in other phases.

4.1. Layers of Metadata Records

The combination of metadata records requires a set of elements that can uniquely identify each metadata record. The element set can be used as primary keys of connecting metadata records. By using the key elements, heterogeneous metadata records can retain their intrinsic elements that may fully satisfy the purpose of each phase. In addition, each metadata record can be applied in a more flexible way in generating information packages whenever it is required. In setting up a set of elements as primary keys, however, the core elements used in metadata records should be identified, which can be manifested as the internal structure of metadata records.

An element can be related to other elements if they share some meanings. This establishes element relationships. This relationship makes the meaning and functions of each element clear. Each element can have attributes that describe certain aspects of the element and prescribe the range of the meaning of the element. These attributes can be also considered as components of resource description. However, most of these attributes can be applied to only one element, although some attributes can be broadly applied to other elements. The attribute may not be important in constructing the internal structure of information packages because it does not establish relationships with other elements and the range of the meaning is relatively narrow. Therefore, this research does not consider the attribute as the component of information packages.

The elements traditionally used to describe an information resource are linearly enumerated in one-dimensional structure. Although this linear structure can clearly show the meanings of the elements embedded in information packages, it cannot fully show the relationships among elements if one element has multiple relationships with other elements. In some cases, hierarchical structure can be more efficient to show the relationships among elements. However, not all elements do have a hierarchical relationship and the hierarchical structure may not provide the space for the enumeration of the meaning of each element.

In this research, a hybrid approach was used that combines linear and hierarchical structure. It can have multiple layers with enumeration of elements. Each element in each layer has hierarchical relationships with other elements in other layers. This multi-layered structure can enumerate the meanings of elements in detail and can also show the hierarchical relationships among elements.

4.2. Identification of Core Elements for Information Packages

In order to construct the internal structure of information packages, the components of an information package need to be transformed to a set of descriptive elements that can be substantially applied to the description of preserved resources. The elements of information packages can be transformed from each aspect of the information resources.

The elements of an information package may be similar to the traditional descriptive elements for information resources. However, they may be related to other elements in multiple layers. This is because an information package is a group of metadata records that share the same contents. In order to comprehensively combine different metadata records for the same resource, the elements used in metadata records should be tied in a structured format.

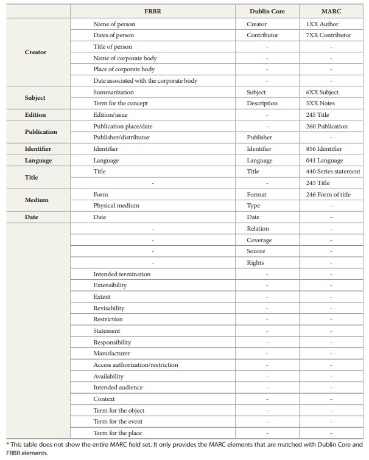

In order to extract the core elements for resource description in the context of digital preservation, this research used two existing metadata standards (Dublin Core and MARC) and one cataloging rule (FRBR). Dublin Core is one of the most representative metadata standards across communities and provides core elements in describing resources in any format. Although MARC was originally designed for printed materials in the library community, it is now applied to any format of resources both in printed and digital formats. These metadata standards are expected to identify the elements that can be essentially used in the resource description for digital preservation. Functional Requirements for Bibliographic Records (FRBR) is not a metadata standard, but a kind of cataloging rule. However, it provides a conceptual structure in describing resources and in supporting the establishment of relationships between elements used in resource description. It can be also used to combine inter-related elements when describing resources. By analyzing these three standards, the essential elements for digital preservation can be extracted (see Appendix 1). The core elements that can be applied to generate information packages appear to be nine elements (see Table 1).

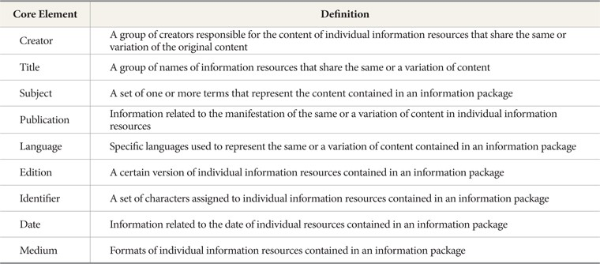

Table 1.

Core Elements of Information Packages

Although these elements may be used as a set of core elements in digital preservation, each element cannot properly identify the preserved resources. Therefore, a set of core elements need to be connected as an independent unit. By using the set of elements, it can properly function as core elements that can support the generation of information packages.

4.3. Multi-Layered Element Relationships for Information Packages

The internal structure of an information package with semi-hierarchical structure proposed in this research consists of three layers with hierarchies: content, carrier, and publication. The layer ‘content’ can be defined as a set of bibliographic elements that describes specific aspects of a resource related to the content of the resource, such as title, creator, and subject. The layer ‘carrier’ is a set of elements that describes the medium of resource which manifests and communicates its contents. Representative elements contained in the ‘carrier’ layer include medium, language, date, and identifier. The bibliographic elements that represent the information related to the publication of the content and media are categorized in the ‘publication’ layer. It includes the elements such as publisher and edition, which are related to the publication of the resource.

These layers were based on the categories of inter-related elements extracted from the three standards. Each layer contains related elements as sub-elements and establishes certain types of relationship with one or more elements. These relationships are established when one element has effect on the meaning of the related elements in constructing an internal structure of the information package.

This research adopted the social network theory when establishing element relationships. The social network theory seems to be useful to identify the relationship between elements in information packages because each element can be seen as a component of element relationships within bibliographic description. The relationship between elements in information packages can be divided into three main types according to strength of relations: strong, medium, and weak ties. The strength of relationship refers to the closeness between two or more components and the range of the function of each component. This strength of relationship can represent the detailed relationships with related elements and can play an important role in constructing the internal structure of information packages.

4.3.1. Content layer

Among the nine elements provided in Table 1, Creator and Title are connected with strong ties. The element Title also establishes a strong tie with the element Subject (see Fig. 1). These two strong ties establish a weak tie among the elements Creator and Subject. These three elements are the ones that describe the content of the information package. The content of the information package is not changed or affected by other parts of the information package, no matter what forms the information package takes. The three elements that describe the content do not describe or prescribe other elements. This means that the meaning of these three elements is not changed or affected by other elements. They can be considered to be grouped together because they are all related to the content of the information package.

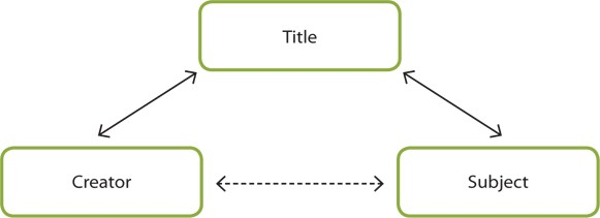

Fig. 1

Element relationships in Content layer

4.3.2. Carrier layer

The elements Language, Identifier, Date, and Medium specify each aspect of the carrier of information resources. They only describe and prescribe the elements in other layers. The meanings of these elements can be changed according to context and the element value can be also changeable. These elements can be grouped together because they are related to the carrier of the information package. However, there is no direct relationship among these elements. These elements can only be connected through other elements. This type of connection establishes weak ties among these elements (see Fig. 2).

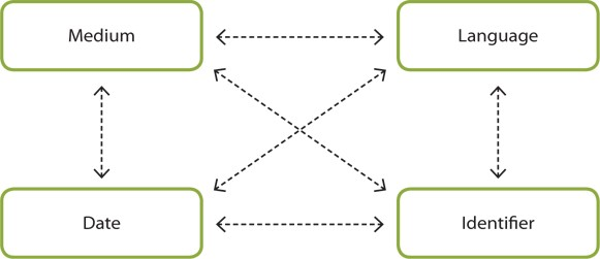

Fig. 2

Element relationship in Carrier layer

4.3.3. Publication layer

The elements Publisher and Edition share many characteristics and can be considered as similar elements in the context of digital preservation. This is because Edition is also a kind of publication of an information resource. In terms of bibliographic information, however, these two elements describe different aspects of information resources. Therefore, Publisher and Edition should be considered as different elements in the internal structure of information packages. These two elements are described by other elements, and simultaneously describe and prescribe the meaning of other elements. These elements represent the process of publishing information resources in order to transmit and communicate information. Therefore, these elements can be considered as a manifestation of the carrier of information. They are also related to the content of an information package. The elements Publisher and Edition establish a strong tie and can be grouped together because they are related to the publication process of information packages (see Fig. 3).

Fig. 3

Element relationship in Publication layer

4.4 Construction of Internal Structure

The internal structure of information packages can be divided into two parts: layer-level and element-level. The relationships in layer-level construct the framework of the internal structure of an information package. The layer-level relationship concentrates on creating layers by combining elements that have the same or similar meanings and representing the relationships between the layers. The layer relationship adopts a hierarchical structure that can clearly represent hierarchical relationships among elements in different layers. This hierarchical structure is also useful to represent multiple relationships if an element establishes relationships with more than one element.

Linear structure is used to represent element relationships in each layer in element-level. Each layer enumerates elements that have the same or similar meaning and functions. The linear structure is efficient to describe the detailed meanings and characteristics of each element in element-centered aspects which hierarchical structure cannot clearly represent. In addition, the element relationships that do not establish hierarchical relationship can be clarified by using linear structure.

By using the structure that combines hierarchical and linear structure, the meanings and functions of the elements in information packages can be clearly represented. The proposed internal structure of information packages consists of three layers: Content layer, Publication layer, and Carrier layer. Each layer adopts linear structure to enumerate the embedded elements. The enumerated elements are connected with other elements by establishing specific relationships (see Fig. 4).

Fig. 4

Proposed internal structure of information package

The Content layer is placed on the top of the internal structure. The elements embedded in the Content layer are connected with each other by establishing strong ties with the element Title. Although the elements Creator and Subject are not directly connected, the weak ties are established through the element Title. The elements in the Content layer are described and prescribed by the elements in other layers.

The Publication layer is placed in the middle of the internal structure. It functions as a mediator that connects the Content layer and the Carrier layer. The two elements embedded in the Publication layer establish strong relationships and describe the element Title in the Content layer. The two elements in the Publication layer do not establish any direct relationship with the elements Creator and Subject in the Content layer, thus weak relationships are established with those elements through the element Title. Therefore, the Publication layer can be considered to describe the Content layer. The Publication layer is also described by the Carrier layer.

The Carrier layer is placed at the bottom of the internal structure. The elements in this layer describe all elements in the Publication layer. This element relationship is established by medium ties between the Publication and the Carrier layers. The elements in the Carrier layer also describe the elements in the Content layer. Therefore, the Carrier layer establishes medium ties with both the Publication layer and weak ties with the Content layers. However, not all of the elements in the Carrier layer describe all of the elements in the Content layer. Therefore, the relationship between the Content and Carrier layers is not a layer-level relationship. The relationship can be considered as an element-level relationship. Although the elements embedded in the Carrier layer are mainly related to represent the characteristics of the carrier of information, these elements are also used to describe the elements in the Publication and the Content layers. The elements in the Carrier layer play important roles in connecting all components of the information package through certain types of relationships.

Synthetically, the layer-level relationship constructs the framework of the internal structure of the information package. This layer relationship is established by the relationships between the elements embedded in each layer. Therefore, the element relationship among elements embedded in each layer provides the foundation of constructing the internal structure of the information package. The elements function as internal nodes that connect each layer. They can also function as external nodes to connect other information packages that contain the same element values.
